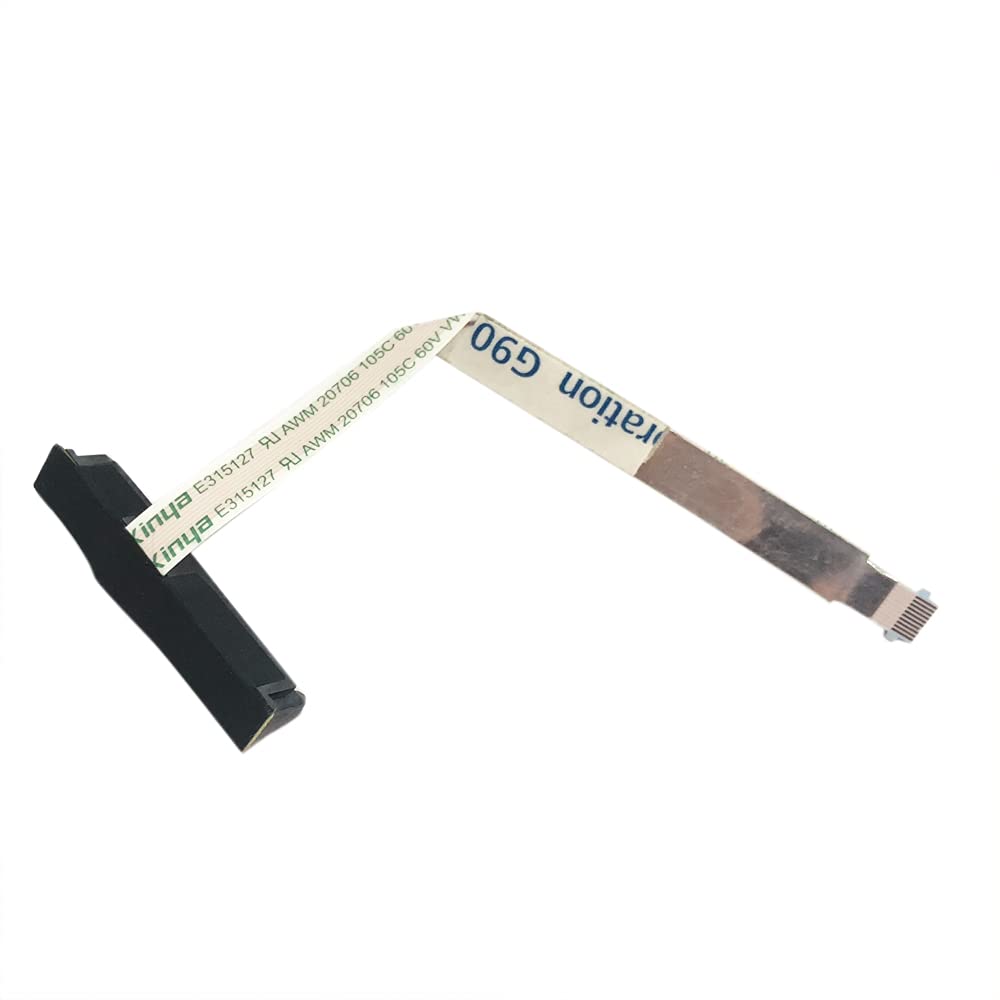

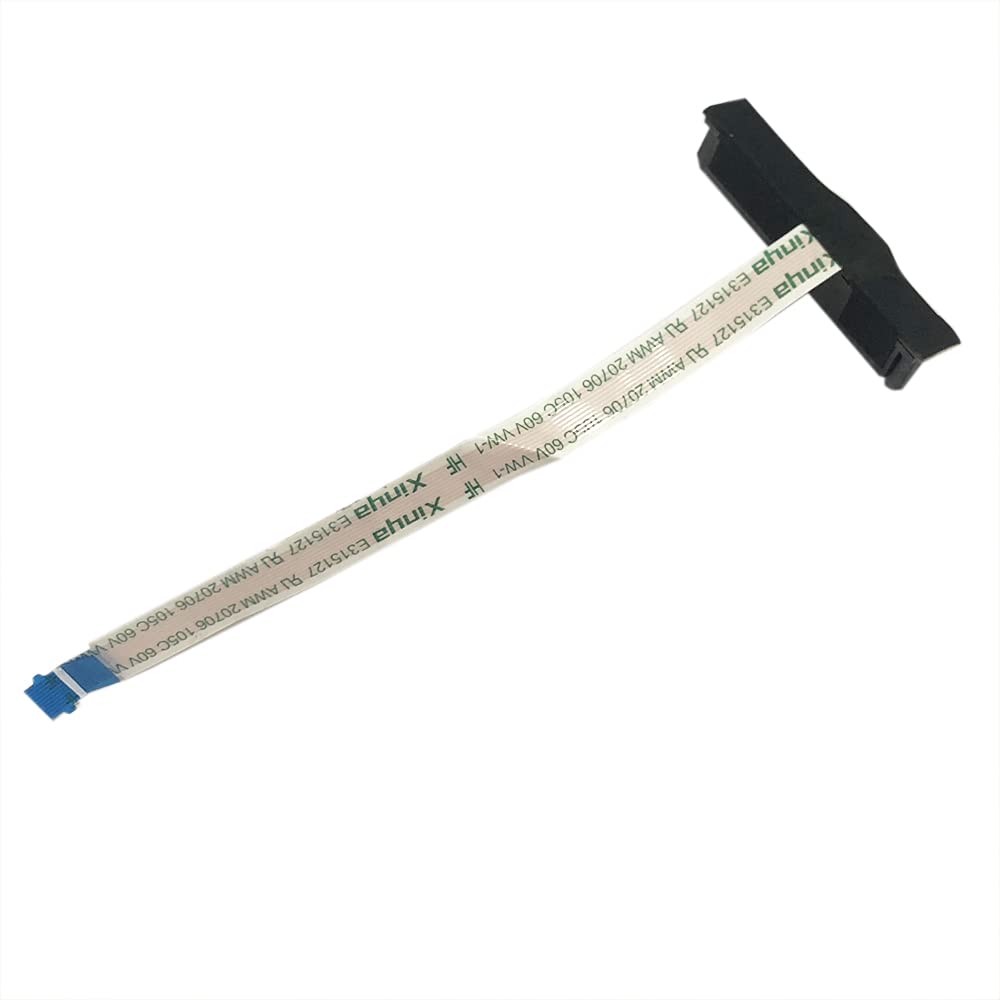

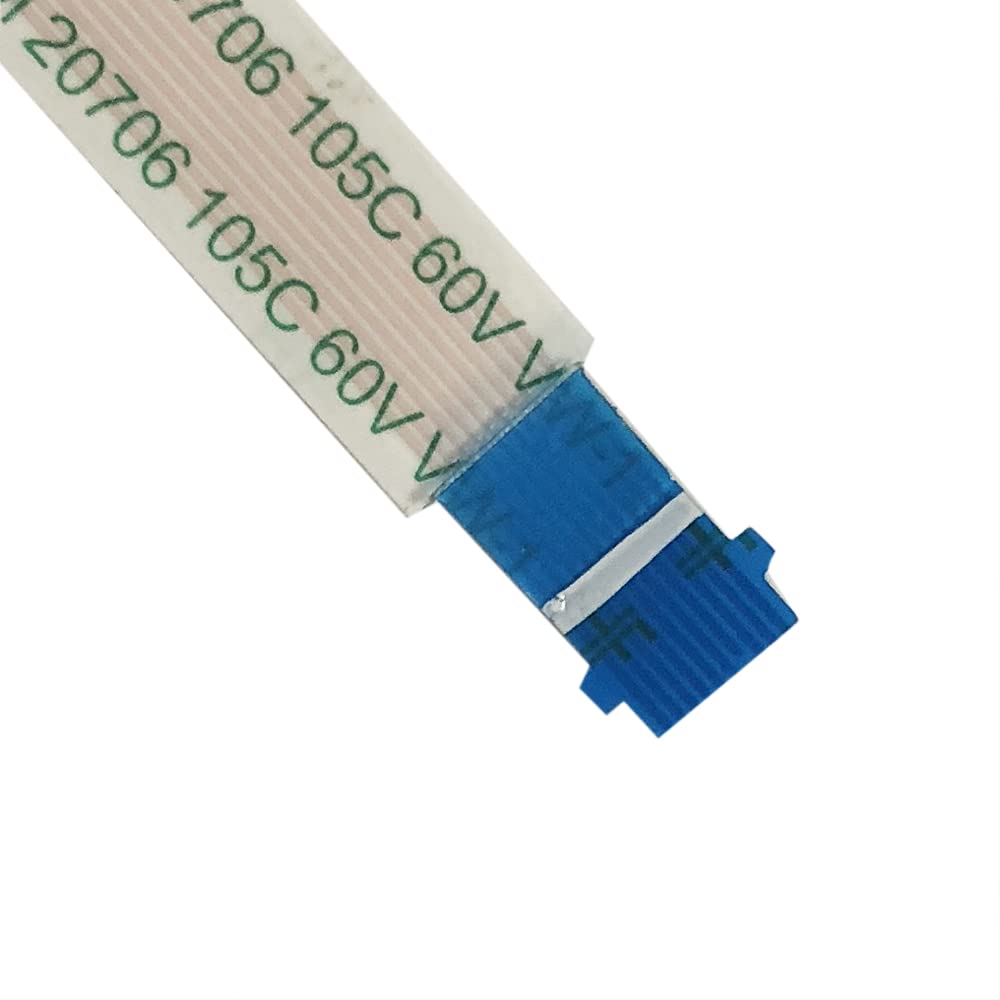

HDD Connector ASUS VivoBook X509J

What is a Laptop HDD Jack ?

The laptop hard disk connector is a specialized SATA cable that links the motherboard to a 2.5″ SATA HDD or SSD. It’s essential for power and data transfer, as the laptop lacks a direct SATA port. Designed for a precise fit in HP models, it offers easy, secure installation and stable performance. This plug-and-play cable is needed for upgrades or replacements. Compatible though exact match should be confirmed. Installation involves unplugging power, opening the bottom panel, and connecting the drive via the cable.

Common Issues with Laptop HDD Jacks:

The HDD jack can develop various problems, such as:

Loose or Damaged Cable – Wear, improper handling, or manufacturing defects can cause poor connections or intermittent contact.
Dislodged Connector – If the laptop is dropped or bumped, the HDD connector may become loose or unplugged from the drive or motherboard.
Bent/Broken Pins – In older or poorly handled SATA connectors, pins may bend or break, preventing proper connection.
Incompatible Cable – Using an incompatible cable or connector can lead to connection failure or even damage the drive.

Asus VivoBook X509,Asus VivoBook X509UJ,Asus VivoBook X509FJ,Asus VivoBook X509FL,Asus VivoBook X509UA,Asus VivoBook X509FB,Asus VivoBook X509FA,Asus VivoBook X509DA,Asus VivoBook X509BA,Asus VivoBook F509FB,Asus VivoBook D509,Asus VivoBook D509DA

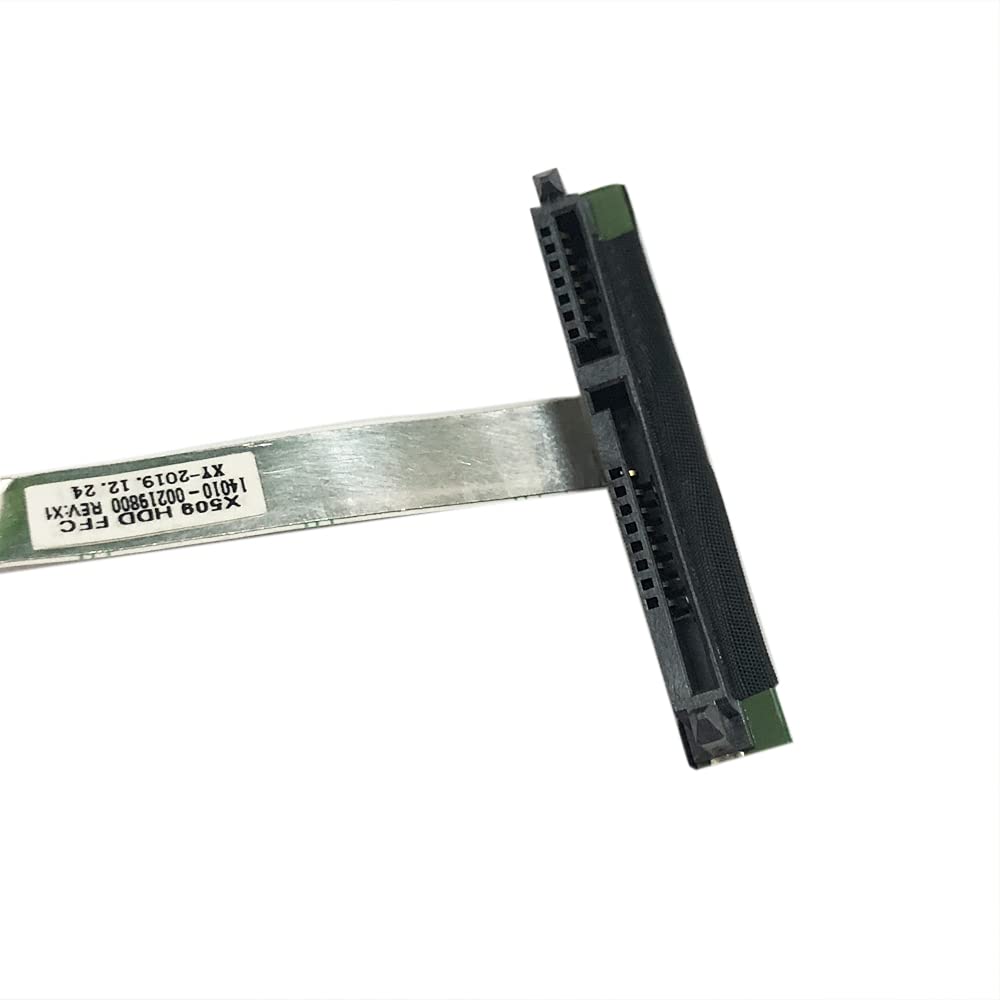

DD0XKRHD001, 14010-00219900

Asus VivoBook X509,Asus VivoBook X509UJ,Asus VivoBook X509FJ,Asus VivoBook X509FL,Asus VivoBook X509UA,Asus VivoBook X509FB,Asus VivoBook X509FA,Asus VivoBook X509DA,Asus VivoBook X509BA,Asus VivoBook F509FB,Asus VivoBook D509,Asus VivoBook D509DA

DD0XKRHD001, 14010-00219900
