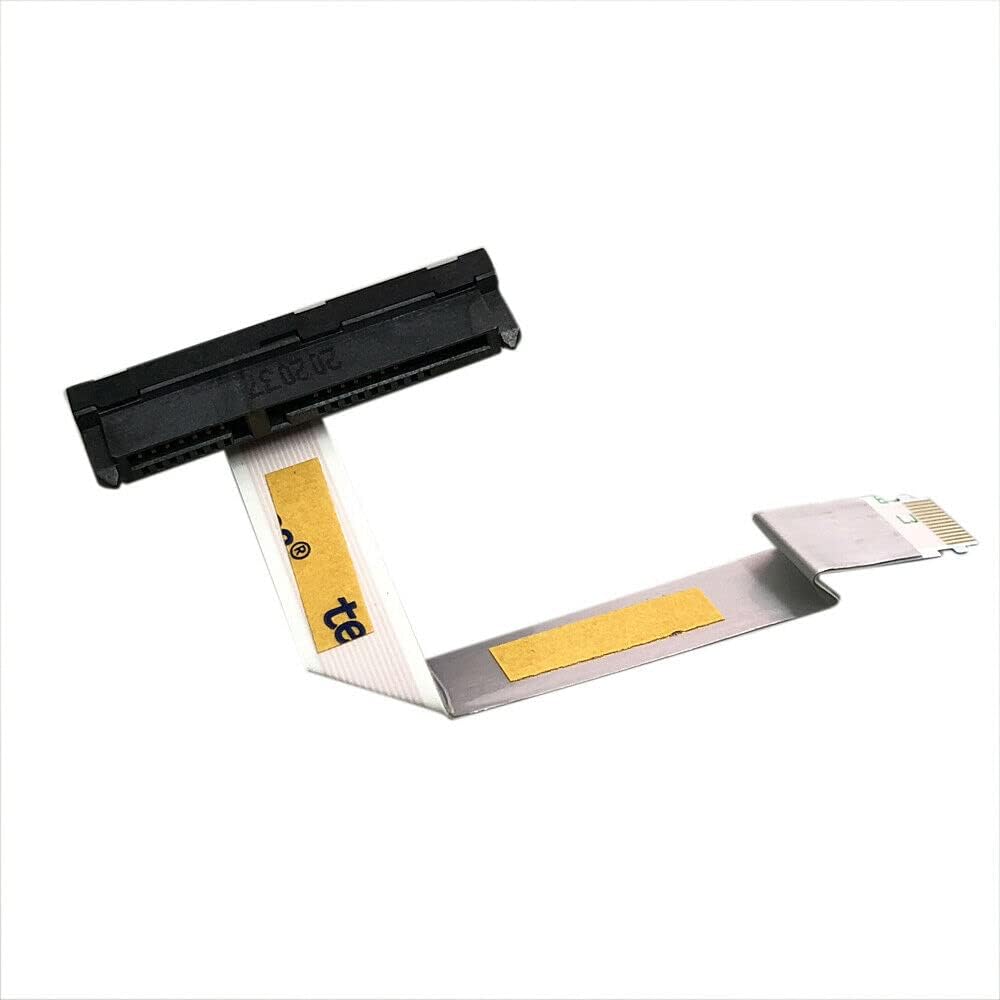

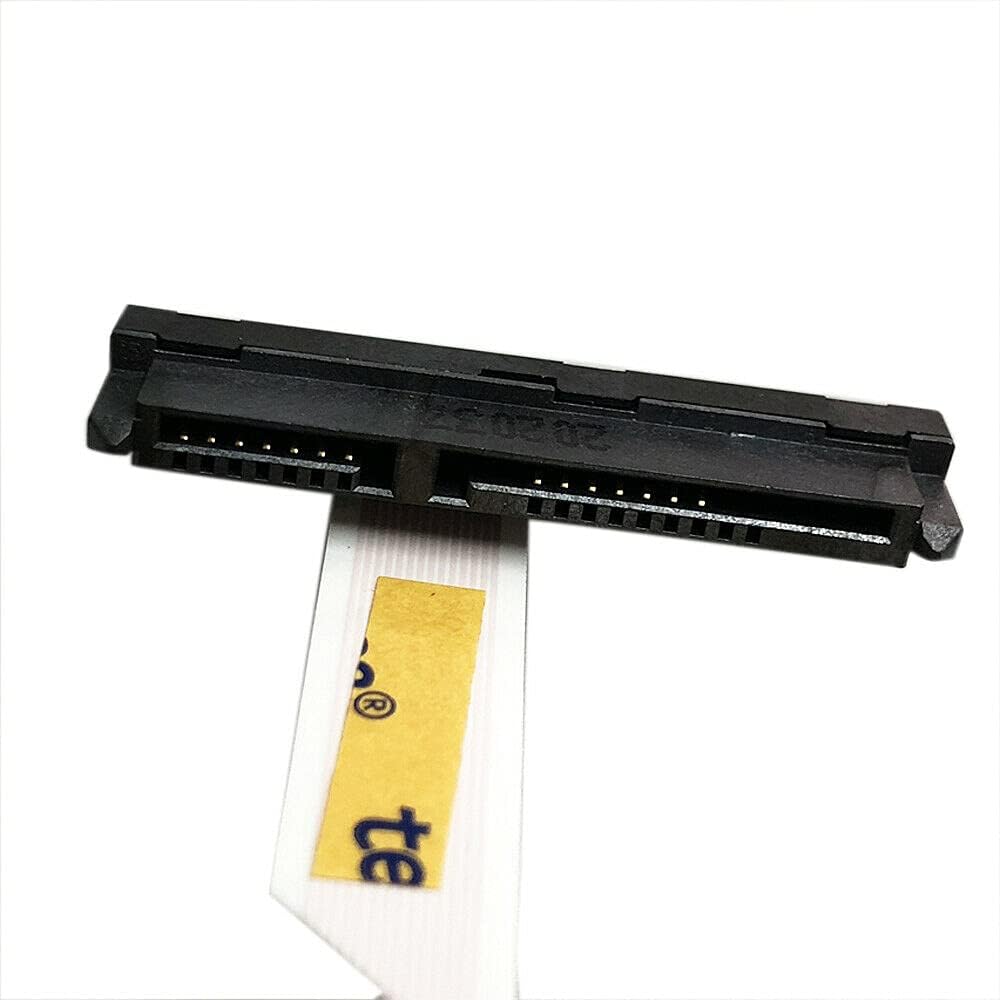

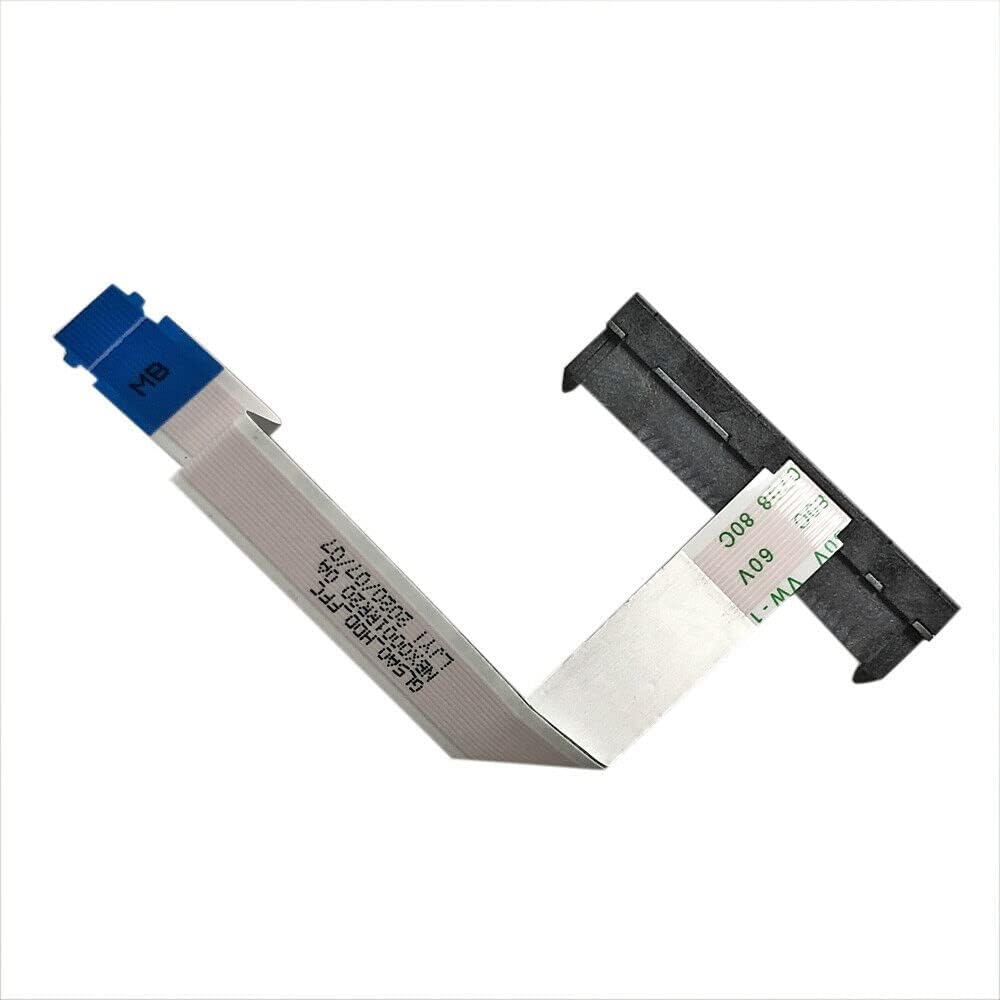

HDD Connector Lenovo Thinkpad E15 Gen1

What is a Laptop HDD Jack ?

The laptop hard disk connector is a specialized SATA cable that links the motherboard to a 2.5″ SATA HDD or SSD. It’s essential for power and data transfer, as the laptop lacks a direct SATA port. Designed for a precise fit in HP models, it offers easy, secure installation and stable performance. This plug-and-play cable is needed for upgrades or replacements. Compatible though exact match should be confirmed. Installation involves unplugging power, opening the bottom panel, and connecting the drive via the cable.

Common Issues with Laptop HDD Jacks:

The HDD jack can develop various problems, such as:

Loose or Damaged Cable – Wear, improper handling, or manufacturing defects can cause poor connections or intermittent contact.
Dislodged Connector – If the laptop is dropped or bumped, the HDD connector may become loose or unplugged from the drive or motherboard.
Bent/Broken Pins – In older or poorly handled SATA connectors, pins may bend or break, preventing proper connection.
Incompatible Cable – Using an incompatible cable or connector can lead to connection failure or even damage the drive.

Lenovo Thinkpad E15 Gen1, Lenovo Thinkpad L15 Gen1, Lenovo Thinkpad E15 Gen2, Lenovo Thinkoad L15 Gen2

5C10Z23838, NBX0001RR20

Lenovo Thinkpad E15 Gen1, Lenovo Thinkpad L15 Gen1, Lenovo Thinkpad E15 Gen2, Lenovo Thinkoad L15 Gen2

5C10Z23838, NBX0001RR20
